de.fu_berlin.inf.dpp.net.internal.Socks5Transport Class Reference

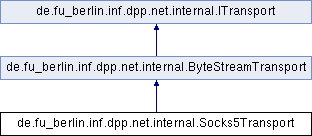

Inheritance diagram for de.fu_berlin.inf.dpp.net.internal.Socks5Transport:

List of all members.

Classes
class	WrappedBidirectionalSocks5BytestreamSession
Public Member Functions
ConnectionMode	getNetTransferMode ()
void	initialize (Connection connection, IByteStreamConnectionListener listener)
void	uninitialize ()
String	toString ()
Protected Member Functions
Future< Socks5BytestreamSession >	futureToEstablishResponseSession (final String sessionID, final String peer)
void	waitToCloseResponse (final Future< Socks5BytestreamSession > future)
String	verboseLocalProxyInfo ()
BytestreamSession	testAndGetMediatedBidirectionalBytestream (Socks5BytestreamSession inSession, Socks5BytestreamSession outSession, boolean preferInSession) throws IOException
boolean	streamIsBidirectional (Socks5BytestreamSession session, boolean sendFirst) throws IOException
void	handleResponse (BytestreamRequest request) throws XMPPException, InterruptedException
IByteStreamConnection	acceptNewRequest (BytestreamRequest request) throws XMPPException, IOException, InterruptedException
IByteStreamConnection	acceptRequest (BytestreamRequest request) throws XMPPException, IOException, InterruptedException
IByteStreamConnection	establishBinaryChannel (String connectionIdentifier, String peer) throws XMPPException, IOException, InterruptedException
BytestreamSession	establishResponseSession (String sessionID, String peer) throws XMPPException, IOException, InterruptedException
BytestreamManager	createManager (Connection connection)

---

Detailed Description

Transport class for SOCKS5 bytestreams. When a Request is received always it is tried to establish a connection to the side peer, too. A special ID is used to distinguish connect requests and response requests. If there is a direct connection, we keep it, the other one discarded. If the is no one, a SMACK will establish a mediated connection by the server.

Are both connection direct, we use the one of the connect request (same for mediated).

However, still there might be a server that only supports unidirectional SOCKS5 bytestreams (i.e. OpenFire). In that case both mediated unidirectional connections are wrapped into a bidirectional one. (see {#link WrappedBidirectionalSocks5BytestreamSession})

Author:

jurke

---

Member Function Documentation

IByteStreamConnection de.fu_berlin.inf.dpp.net.internal.Socks5Transport.acceptNewRequest

(

BytestreamRequest

request

)

throws XMPPException, IOException, InterruptedException [protected]

Accepts a Request and returns an established IByteStreamConnection.

Immediately tries to establish a second session to the requesting peer but also accepts this request to achieve a direct connection although one peer might be behind a NAT.

A direct connection is used, the other discarded where the requesting session is preferred.

In case of unidirectional connections both sessions a wrapped into a bidirectional one.

Parameters:

request

Returns:

established BinaryChannel

Exceptions:

XMPPException
InterruptedException
IOException

IByteStreamConnection de.fu_berlin.inf.dpp.net.internal.Socks5Transport.acceptRequest

(

BytestreamRequest

request

)

throws XMPPException, IOException, InterruptedException [protected]

Handles the SOCKS5Bytestream Request and distinguishes between connect requests and response requests.

see handleResponse() and acceptNewRequest()

Reimplemented from de.fu_berlin.inf.dpp.net.internal.ByteStreamTransport.

BytestreamManager de.fu_berlin.inf.dpp.net.internal.Socks5Transport.createManager

(

Connection

connection

)

[protected, virtual]

Parameters:

connection

Returns:

the configured BytestreamManager for the specialized transport method

Implements de.fu_berlin.inf.dpp.net.internal.ByteStreamTransport.

IByteStreamConnection de.fu_berlin.inf.dpp.net.internal.Socks5Transport.establishBinaryChannel	(	String	connectionIdentifier,
		String	peer
	)		throws XMPPException, IOException, InterruptedException [protected]

Tries to establish a connection to peer and waits for peer to connect. See handleResponse().

Reimplemented from de.fu_berlin.inf.dpp.net.internal.ByteStreamTransport.

BytestreamSession de.fu_berlin.inf.dpp.net.internal.Socks5Transport.establishResponseSession	(	String	sessionID,
		String	peer
	)		throws XMPPException, IOException, InterruptedException [protected]

Parameters:

peer

Returns:

a BytestreamSession with a response ID

Exceptions:

XMPPException
IOException
InterruptedException

Future<Socks5BytestreamSession> de.fu_berlin.inf.dpp.net.internal.Socks5Transport.futureToEstablishResponseSession	(	final String	sessionID,
		final String	peer
	)		[protected]

Parameters:

sessionID
peer

Returns:

a Future that tries to establish a second connection to the peer's local SOCKS5 proxy

ConnectionMode de.fu_berlin.inf.dpp.net.internal.Socks5Transport.getNetTransferMode

(

)

[virtual]

Implements de.fu_berlin.inf.dpp.net.internal.ByteStreamTransport.

void de.fu_berlin.inf.dpp.net.internal.Socks5Transport.handleResponse

(

BytestreamRequest

request

)

throws XMPPException, InterruptedException [protected]

Handles a response request.

The session is exchanged to the connecting thread.

Parameters:

request

Exceptions:

XMPPException
InterruptedException

void de.fu_berlin.inf.dpp.net.internal.Socks5Transport.initialize	(	Connection	connection,
		IByteStreamConnectionListener	listener
	)

Initializes the transport. After initialization the transport is able to establish connections via connect.

Parameters:

connection
listener

Reimplemented from de.fu_berlin.inf.dpp.net.internal.ByteStreamTransport.

boolean de.fu_berlin.inf.dpp.net.internal.Socks5Transport.streamIsBidirectional	(	Socks5BytestreamSession	session,
		boolean	sendFirst
	)		throws IOException [protected]

Sends and receives an INT to distinguish between bidirectional and unidirectional streams.

Parameters:

session
sendFirst

Returns:

whether a stream is bidirectional

Exceptions:

IOException

BytestreamSession de.fu_berlin.inf.dpp.net.internal.Socks5Transport.testAndGetMediatedBidirectionalBytestream	(	Socks5BytestreamSession	inSession,
		Socks5BytestreamSession	outSession,
		boolean	preferInSession
	)		throws IOException [protected]

Tests one of the bytestreams != null in the opposite direction. It returns it if bidirectional or tries to wrap two unidirectional streams if possible. Else an exception is thrown. The testing order is defined by the boolean preferInSession.

Precondition:

inSession!=null || outSession!=null

Parameters:

inSession
outSession
preferInSession	which stream to test preferable (if != null)

Returns:

a bidirectional BytestreamSession

Exceptions:

IOException

if there is only one unidirectional session

String de.fu_berlin.inf.dpp.net.internal.Socks5Transport.toString

(

)

void de.fu_berlin.inf.dpp.net.internal.Socks5Transport.uninitialize

(

)

Un-initializes the transport. After un-initialization the transport is not able to establish connections via connect.

Reimplemented from de.fu_berlin.inf.dpp.net.internal.ByteStreamTransport.

String de.fu_berlin.inf.dpp.net.internal.Socks5Transport.verboseLocalProxyInfo

(

)

[protected]

void de.fu_berlin.inf.dpp.net.internal.Socks5Transport.waitToCloseResponse

(

final Future< Socks5BytestreamSession >

future

)

[protected]

Starts a new thread that waits until the connection is established to close it correctly.

Parameters:

future
